In industrial settings, equipment failures like cracks in critical components can lead to costly downtime and safety risks. At UPL Chemical Limited, a leading global provider of sustainable agricultural solutions, a cracked ms steel valve bonnet threatened to disrupt operations. Shree Ram Sealing Engineers stepped in with their innovative SR Pipe Repair Bandage Kit to address the issue swiftly and effectively. This case study explores how our team identified the problem, provided a reliable solution, and restored operations at UPL, showcasing the power of advanced pipe repair technology.
UPL Chemical Limited, headquartered in Mumbai, India, is a powerhouse in the agrochemical industry. With a focus on sustainable farming solutions, UPL produces crop protection products, seeds, and industrial chemicals. Their manufacturing facilities are equipped with complex systems, including pipelines and valves, that must operate seamlessly to maintain production schedules. Any equipment failure, such as a cracked valve bonnet, can lead to significant operational setbacks, making reliable repair solutions critical to their success.
A valve bonnet is a crucial component of industrial valves, acting as a cover that houses the valve’s internal parts, such as the stem and packing. Made from materials like mild steel (MS), valve bonnets are designed to withstand high pressure and harsh chemical environments. However, factors like stress, corrosion, or manufacturing defects can cause cracks, leading to leaks or complete valve failure. Repairing a cracked MS steel valve bonnet requires precision and a solution that ensures long-term durability without compromising the system’s integrity.
What We Discovered
Our team at Shree Ram Sealing Engineers conducted a thorough on-site assessment to understand the extent of the damage. Using non-destructive testing methods, we confirmed that the crack was superficial but risked worsening under continued pressure. The valve bonnet’s material, mild steel, was prone to further stress cracking if not addressed promptly. Additionally, we noted that the pipeline system operated at pressures up to 300 psi and temperatures around 100°C, requiring a repair solution that could withstand these conditions.
Our findings highlighted the need for a non-invasive repair method that could:
- Seal the crack effectively without requiring a system shutdown.
- Provide a durable, pressure-resistant fix to prevent future leaks.
- Be applied in a confined space with minimal risk to the surrounding environment.
Based on our expertise in industrial sealing solutions, we recommended the SR Pipe Repair Bandage Kit, a proven product designed for emergency repairs on pipelines and valve components.

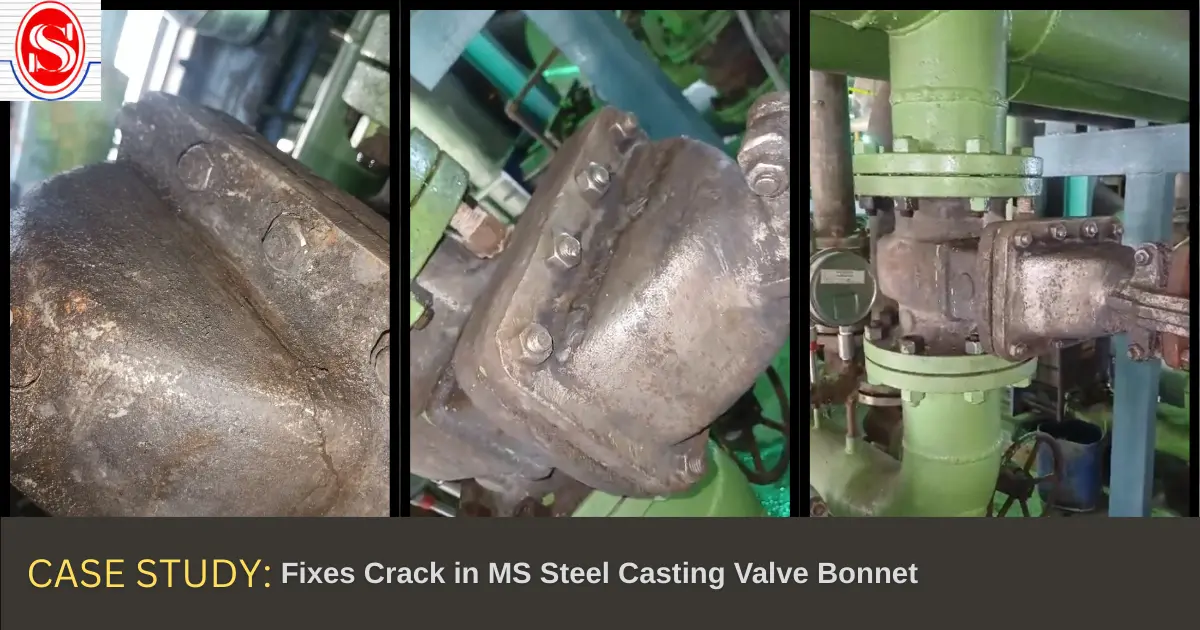

At one of UPL Limited manufacturing plants, engineers noticed a significant issue: a longitudinal crack in an MS steel valve bonnet within a critical pipeline system. The valve bonnet, part of a high-pressure chemical processing line, was leaking, causing operational inefficiencies and posing safety risks. The crack, approximately 150 mm long, was likely caused by a combination of thermal stress and material fatigue.
The challenges UPL faced were multifaceted:
- Operational Downtime: Shutting down the pipeline for traditional repairs, such as welding or replacement, would halt production, leading to substantial financial losses.
- Safety Concerns: The leak risked exposing workers to hazardous chemicals, necessitating an immediate solution.
- Complex Repair Environment: The valve bonnet’s location made access difficult, and welding posed risks due to the presence of flammable materials nearby.
- Cost Constraints: UPL needed a cost-effective solution that avoided the high expenses of replacing the entire valve assembly.
Solution Provided by Shree Ram Sealing Engineers
Shree Ram Sealing Engineers proposed a two-step repair process using the SR Pipe Repair Bandage Kit, which includes a water-activated fiberglass bandage impregnated with polyurethane resin and a high-strength sealing putty. This kit is engineered to repair leaks and cracks in various materials, including steel, copper, PVC, and more, making it ideal for UPL’s needs.
Step 1: Surface Preparation and Sealing
Our technicians began by preparing the damaged valve bonnet. The area around the crack was cleaned and roughened using a wire brush to ensure optimal adhesion. We then applied the SR Bond Sealing Putty, a fast-curing compound, directly into the crack. This putty filled the fissure, creating a robust initial seal that prevented further leakage.
Step 2: Reinforcement with SR Pipe Repair Bandage
Next, we activated the SR Pipe Repair Bandage by soaking it in water for 10 seconds, which initiated the curing process. The bandage was then tightly wrapped around the valve bonnet, covering the crack and extending 50 mm on either side for added strength. Our team applied multiple layers, ensuring a minimum thickness of 10 mm (approximately 12–15 wraps), as recommended for high-pressure applications. The bandage was molded firmly to the surface, allowing the resin to set and form a rock-hard, impact-resistant shell within 30 minutes.
The entire repair was completed in under an hour, with no need to shut down the pipeline, minimizing disruption to UPL’s operations.
The SR Pipe Repair Bandage Kit proved to be the perfect solution for UPL’s cracked valve bonnet. Its key features include:
- Rapid Application: The water-activated resin sets in minutes, allowing for quick repairs in emergency situations.
- High Pressure and Temperature Resistance: The bandage can withstand pressures up to 360 psi and temperatures up to 150°C, making it suitable for UPL’s demanding environment.
- Chemical Resistance: The kit is resistant to most chemicals, including diluted acids and fuels, ensuring long-term durability in a chemical plant.
- Versatility: It can be applied to various materials and shapes, including complex components like valve bonnets.
- Compliance with Standards: The SR Pipe Repair Bandage Kit meets stringent quality standards, ensuring safety and reliability.
UPL’s maintenance team was thrilled with the results. Mr. Sanjay Patel, the plant manager, shared his feedback:
Shree Ram Sealing Engineers saved us from a major operational crisis. The SR Pipe Repair Bandage Kit was easy to apply, and the repair was completed without stopping our production line. The valve bonnet is now stronger than ever, and we’ve had no issues since the repair. Their expertise and innovative solutions have earned our trust, and we’ll be using their products for future maintenance needs.
This testimonial underscores the effectiveness of our solution and the value it brought to UPL’s operations.
The Successful Repair of the Cracked MS steel valve bonnet at UPL Chemical Limited demonstrates the power of innovative solutions like the SR Pipe Repair Bandage Kit. By addressing the problem quickly, safely, and cost-effectively, Shree Ram Sealing Engineers helped UPL avoid costly downtime, enhance workplace safety, and maintain production efficiency. This case study highlights our commitment to delivering high-quality, reliable sealing solutions that meet the needs of industrial clients worldwide.
